7. IoT Protocols

Constrained Application Protocol (CoAP)

CoAP is an internet utility protocol for constrained gadgets. It is designed to enable simple, constrained devices to join IoT through constrained networks having low bandwidth availability. This protocol is primarily used for machine-to-machine (M2M) communication and is particularly designed for IoT systems that are based on HTTP protocols.

CoAP makes use of the UDP protocol for lightweight implementation. It also uses restful architecture, which is just like the HTTP protocol. It makes use of dtls for the cozy switch of statistics within the slipping layer.


Message Queue Telemetry Transport Protocol (MQTT)

MQTT (Message Queue Telemetry Transport) is a messaging protocol developed with the aid of Andy Stanford-Clark of IBM and Arlen Nipper of Arcom in 1999 and is designed for M2M communication. It’s normally used for faraway tracking in IoT. Its primary challenge is to gather statistics from many gadgets and delivery of its infrastructure. MQTT connects gadgets and networks with packages and middleware. All the devices hook up with facts concentrator servers like IBM’s new message sight appliance. MQTT protocols paintings on top of TCP to offer easy and dependable streams of information.

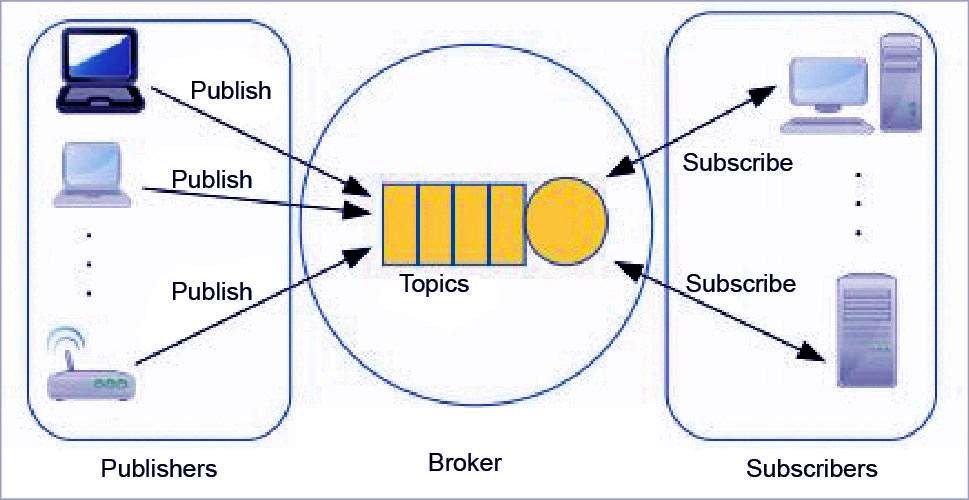

These IoT protocols include 3 foremost additives: subscriber, publisher, and dealer. The writer generates the  information  and transmits the facts to subscribers through  the dealer. The dealer guarantees safety by  means  of  move-checking  the authorization of publishers and subscribers.

Advanced Message Queuing Protocol (AMQP)

This was evolved by John O’Hara at JP Morgan Chase in London. AMQP is a software layer protocol for message-oriented middleware environment. It supports reliable verbal exchange through message transport warranty primitives like at-most-once, at least once and exactly as soon as shipping.

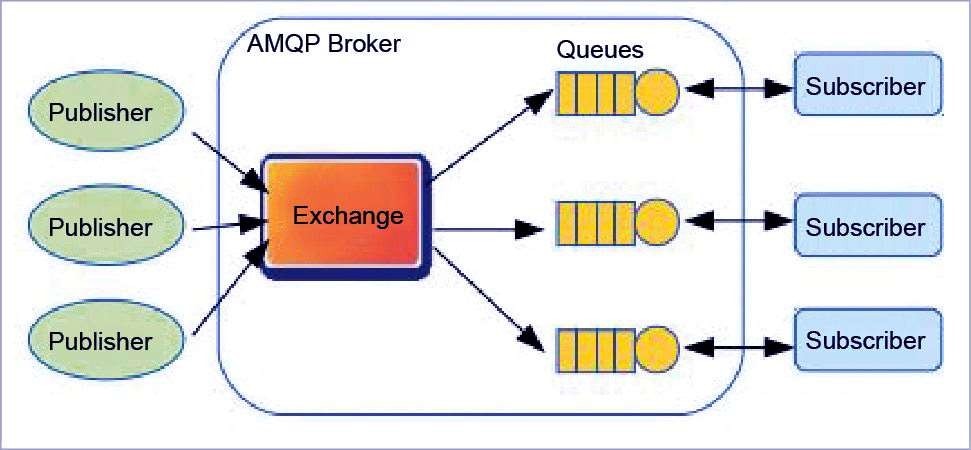

  • The AMQP – IoT protocols consist of hard and fast components that route and save messages within a broker carrier, with a set of policies for wiring the components together. The AMQP protocol enables patron programs to talk to the dealer and engage with the AMQP model. This version has the following three additives, which might link into processing chains in the server to create the favored capabilities.
  • Exchange: Receives messages from publisher primarily based programs and routes them to ‘message queues.
  • Message Queue: Stores messages until they may thoroughly process via the eating client software.
  • Binding: States the connection between the message queue and the change.

Data Distribution Service (DDS)

It enables a scalable, real-time, reliable, excessive-overall performance and interoperable statistics change via the submit-subscribe technique. DDS makes use of multicasting to convey high-quality QoS to applications.
DDS is deployed in platforms ranging from low-footprint devices to the cloud and supports green bandwidth usage in addition to the agile orchestration of system additives.
The DDS – IoT protocols have fundamental layers: facts centric submit-subscribe (dcps) and statistics-local reconstruction layer (dlrl). Dcps plays the task of handing over the facts to subscribers, and the dlrl layer presents an interface to dcps functionalities, permitting the sharing of distributed data amongst IoT enabled objects.


AMQP

Advanced Message Queuing Protocol or AMQP is an application layer protocol. It is basically message oriented and designed for middleware environments. The AMQP IoT messaging protocols got the approval as an international standard. The processing chain of AMQP IoT Protocol consists of 3 necessary components, and those are Exchange, Message Queue and Binding.
The Exchange part works by getting the message and putting them in the queues. The job of the Message Queue is to store the message, and it stores the information until the messages are developed by the client app safely. The work, the Binding Component, does is stating the connection between the Exchange Component and the Message Queue Component.
Cellular

There are a lot of IoT applications that may call for operation over a longer remoteness. These IoT applications can take the help of Cellular communication capabilities like GSM/3G/4G. Cellular is one of the IoT Communication Protocols which can send or transfer a high amount of data. Here, you have to remember is the cost.


The fee for sending a high quantity of data will be high too. Cellular does need not only high cost but also to need high power consumption for several applications. This Internet of Things Protocol is amazing for sensor-based data projects of low-bandwidth. This is because they can send a very insignificant amount of data or information on the Internet.
It includes the low-cost development board of authentic tiny CELLv1.0. It also has a range of shield that connects boards (so that you can use them with the Arduino and Raspberry Pi platforms.) Here, the key product is SparqEE.

NFC


NFC from the IoT Protocols takes the benefit of safe two-way communication linking. Recently, we saw that the NFC IoT Communication Protocols are applicable for the smartphones.
The NFC or Near Field Communication allows the clients to connect to the electronic devices, to use digital contents and to do the contactless payment transaction. The essential work of NFC is to expand the “contactless” card technology. It works within 4cm (between devices) by enabling the devices for sharing information.

LoRaWAN

LoRaWAN or the Long Ranged Wide Area Network is one of the IoT Protocols for the wide area networks. LoRaWAN IoT Network Protocols is specifically designed for supporting the vast networks with the help of million low-power devices. Smart cities use this kind of protocol.


Including the low-cost mobile communication, LoRaWAN is also famed in scores of industries for protected bi-directional communication. The frequency of LoRaWAN may vary from network to network. The data rates of this Internet of Things Protocols runs between 0.3-50 kbps. In the urban areas, the range LoRaWAN varies from 2 km to 5 km. In the suburban areas, the range of this IoT protocol is about 15 km.
Refrences:-
